Ternary plots are fundamental mathematical diagrams used across geology, chemistry, materials science, and fluid engineering to depict three-component systems bound by a constant sum of 100%. However, when technical diving specialists, hyperbaric technicians, and gas blenders evaluate breathing mixtures, standard ternary charts often lack the domain-specific constraints required for life-support planning.
This is where specialized Trimix Triangles diverge from generic three-variable diagrams.
While both graph types rely on identical coordinate geometry, specialized Trimixtriangles transform abstract compositional coordinates into functional, safety-critical decision frameworks. Understanding the key differences between generic ternary plots and purpose-built Trimix models allows engineers, researchers, and technical divers to select the right visual tools for their analytical workflows.
A ternary plot illustrating gas blending trajectories and partial pressure steps. Source: ResearchGate
1. General Principles vs. Domain-Specific Constraints
The primary difference between a standard ternary plot and a Trimix Triangle lies in how the interior coordinate space is contextualized.
Standard Ternary Plots
A generic ternary diagram represents pure compositional ratios. Whether plotting clay-silt-sand soil composition, metal alloys (Fe-Ni-Cr), or chemical solutions, every point inside the equilateral perimeter is treated as mathematically valid. The plot itself does not impose functional boundaries unless custom contours are added manually.
Trimix Triangles
A Trimix Triangle maps three specific life-support gases: Oxygen (O2), Nitrogen (N2), and Helium (He). Unlike academic ternary diagrams, large sections of a Trimix triangle are explicitly marked as hazardous or unbreathable based on hyperbaric human physiology:
- Hypoxic Regions (FO2<0.18): Mixtures that cannot support human life at sea level atmospheric pressure.
- Hyperoxic Regions (ppO2>1.4 bar): Mixtures that risk causing central nervous system (CNS) oxygen toxicity seizures at target depths.
- High-Density / Narcotic Zones: Areas where excessive nitrogen or gas density elevates the work of breathing and cognitive impairment.
Standard Ternary Plot Trimix Triangle
------------------------- -----------------------
Vertices: Any 3 variables (A, B, C) Strictly Oxygen, Nitrogen, Helium
Boundaries: Pure composition (0–100%) Physiological safe windows (MOD/END)
Primary Goal: Display raw mixture ratios Prevent hypoxia, toxicity, and narcosis
Interpretation: Abstract chemical/physical state Actionable hyperbaric operational guidance
2. Geometric Standardization and Axis Orientation
Standard ternary plots in chemistry or geology do not enforce a universal rule regarding which vertex represents which component. A geologist might place Sand at the top apex, while a chemical engineer might place Water at the same position.

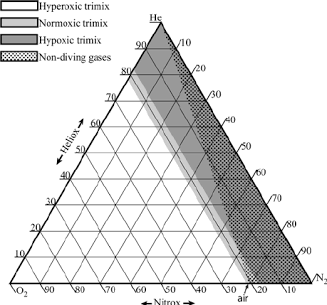

Standardized vertex layouts ensure consistency across gas blending charts. Source: ResearchGate
To ensure absolute safety during high-pressure gas blending, Trimix Triangles adhere to a strict, standardized vertex convention:
- Top Apex: 100% Helium (He) — Represents the non-narcotic diluent gas.
- Bottom-Left Vertex: 100% Oxygen (O2) — Represents the life-sustaining gas bound by toxicity limits.
- Bottom-Right Vertex: 100% Nitrogen (N2) — Represents the dense, narcotic background gas.
This universal standardization prevents fatal interpretation errors when technical blenders read charts under field conditions or transition between different software interfaces.
3. Comparing Features: Standard Ternary Plots vs. Trimix Triangles
Evaluating the visual and analytical capabilities of both chart types highlights why domain-specific customization is crucial for gas management:
| Architectural Feature | Standard Ternary Plot | Trimix Triangle |
|---|---|---|
| Variable Constraint | A+B+C=100% | FO2+FN2+FHe=1.00 |
| Grid Line Geometry | 60∘ triangular grid | 60∘ triangular grid with partial-pressure overlays |
| Isopleth Mapping | Custom phase boundaries or isotherms | Maximum Operating Depth (MOD) & Equivalent Narcotic Depth (END) lines |
| Vector Modeling | Chemical titration paths | Sequential gas blending trajectories (He → O2 → Air) |
| Density Analysis | Specific gravity contours | Gas density thresholds (targeting <5.2 g/L) |
| Target Application | Material science, metallurgy, geology | Technical diving, saturation life-support, commercial hyperbarics |
4. Operational Workflow: How Trimix Triangles Accelerate Calculations
For technical gas blenders, performing partial pressure calculations manually involves solving multiple simultaneous linear equations to account for cylinder volume, temperature changes, and residual gas concentrations.
Using a specialized Trimix Triangle transforms these complex algebraic steps into direct geometric vector paths, dramatically accelerating planning workflows:
1
Plot Cylinder Starting Point
Locate residual gas state
1.Plot Cylinder Starting Point:Locate residual gas state.
Identify the starting gas coordinate (FO2,FHe) of the partially filled cylinder on the triangle.
2
Calculate Pure Helium Addition
Draw vector toward pure Helium apex
2.Calculate Pure Helium Addition:Draw vector toward pure Helium apex.
Adding pure helium drives the cylinder state in a straight line directly toward the 100% Helium top vertex. Stop at the intersection line corresponding to the required helium fraction.
3
Calculate Pure Oxygen Addition
Draw vector toward Oxygen vertex
3.Calculate Pure Oxygen Addition:Draw vector toward Oxygen vertex.
Injecting pure oxygen shifts the mixture state toward the bottom-left O2 vertex, positioning the gas on a direct topping-line trajectory.
4
Top Off with Compressed Air
Vector toward Nitrox baseline
4.Top Off with Compressed Air:Vector toward Nitrox baseline.
Pressurizing the cylinder with air (21% O2, 79% N2) draws the mixture along a straight path down to the target blend coordinate, completing the process without recalculating manual partial pressure steps.
5. When to Use Which Plotting Framework
Selecting between a standard ternary plot and a dedicated Trimix chart depends entirely on your operational goals:
- Use a Standard Ternary Plot when: You are conducting academic research in metallurgy, analyzing phase equilibria in chemical solutions, or building generalized data visualization libraries (like
plotlyormatplotlib) where variables are arbitrary. - Use a Trimix Triangle when: You are designing breathing gases for deep subsea diving, programming automated gas panel software, auditing hyperbaric life-support logs, or calculating partial pressure vectors for multi-gas cylinder fills.
Conclusion: Bridging Abstract Geometry and Operational Safety
While standard ternary plots provide the underlying geometric math, Trimix Triangles add the physiological rules, safety thresholds, and vector workflows required for deep life-support engineering. By embedding real-world boundaries—such as oxygen toxicity limits, narcotic depths, and blending trajectories—directly onto the visual matrix, Trimix Triangles ensure fast, error-free calculations when precision matters most.
